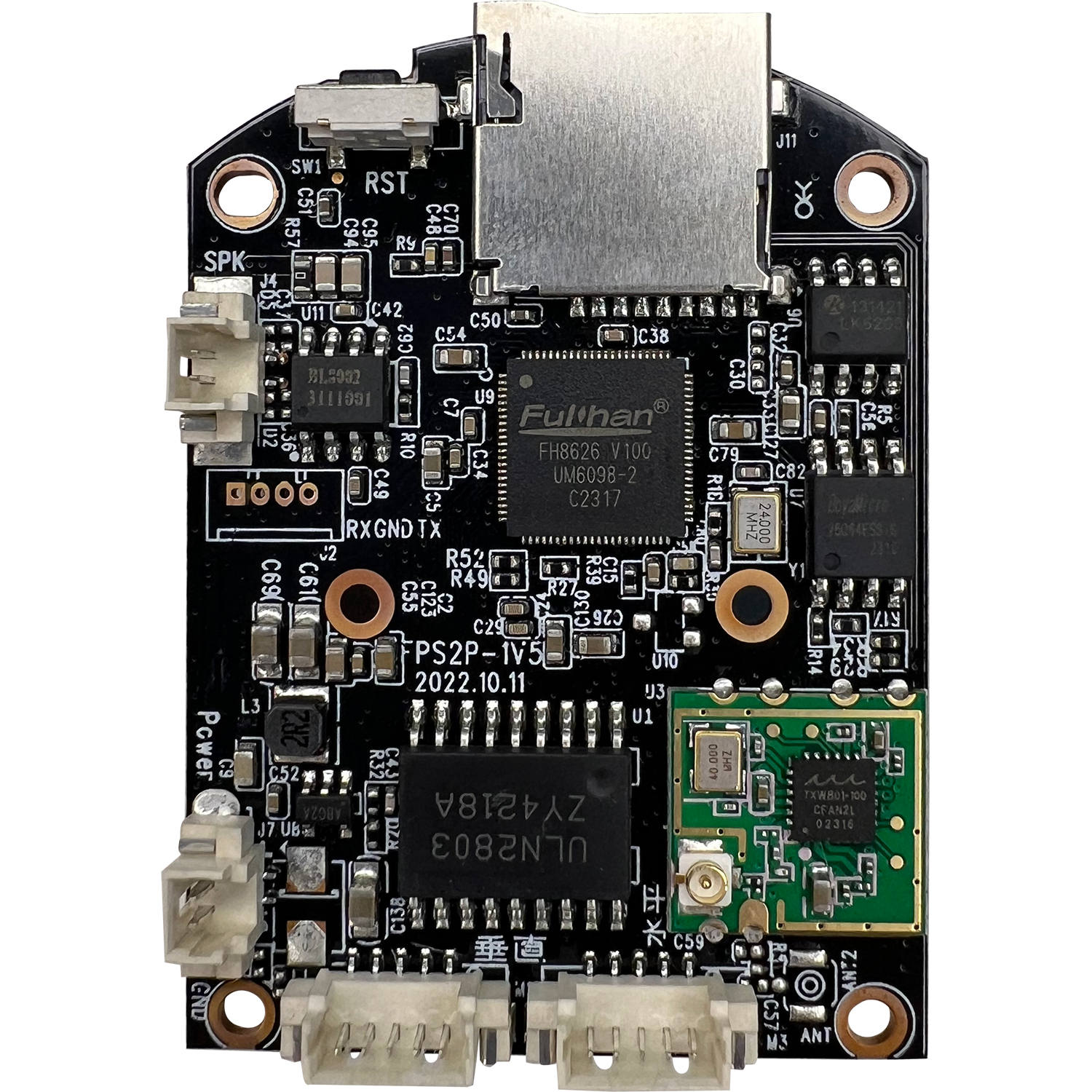

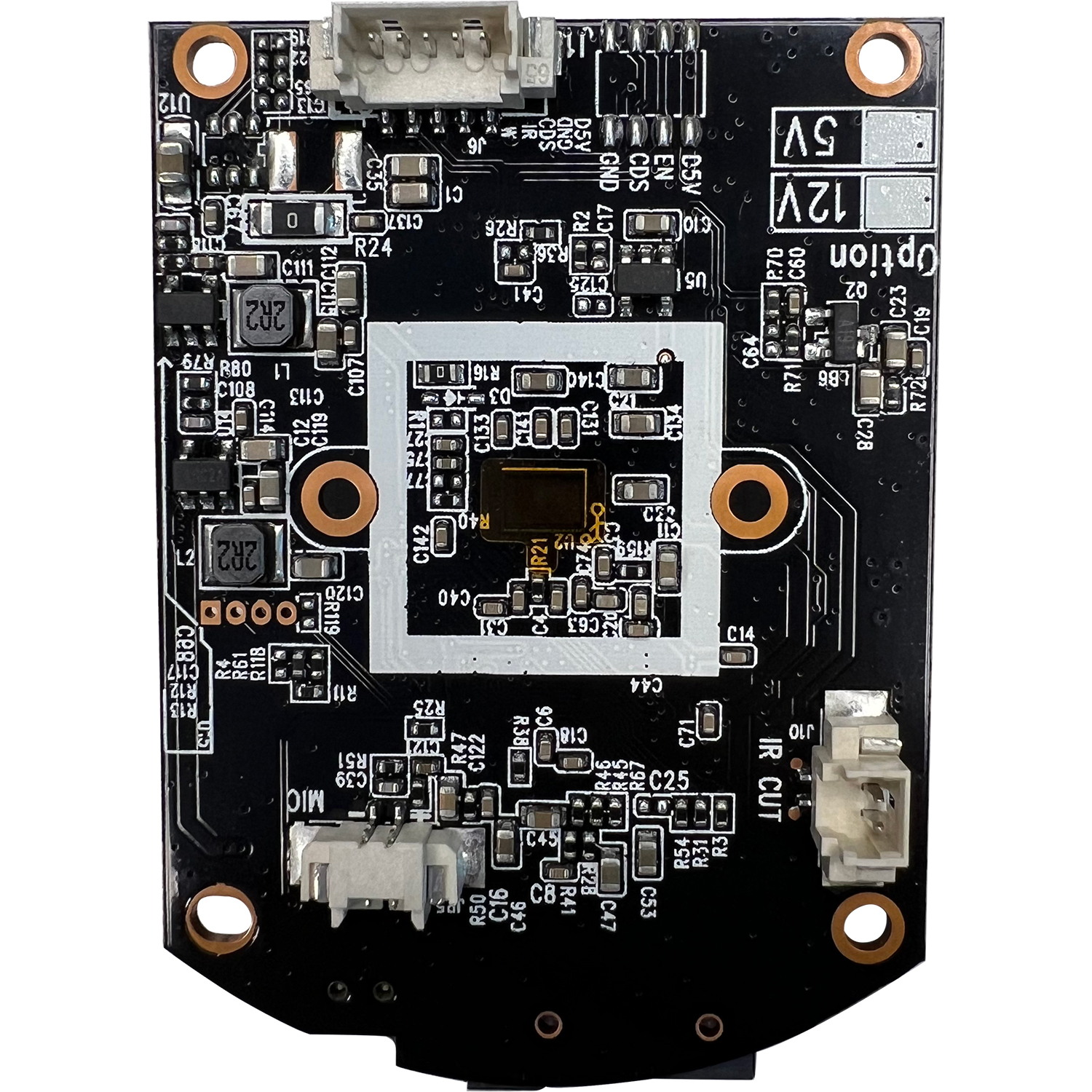

2MP WIFI IP Camera Module
Suitable to accemble indoor PT camera, lightbuld camera or indoor small PTZ camera.Compatible with IVY Cloud Platform and IVY Smart APP directly.
Suitable to accemble indoor PT camera, lightbuld camera or indoor small PTZ camera.Compatible with IVY Cloud Platform and IVY Smart APP directly.
Support AI smart detection on cloud: human, face, vehicle, package, animal, can expand more object types
2MP full HD resolution, support APP control image, flip, support APP control day and night mode, full color
Support audio two-way intercom, support APP play alarm sound
Support 2.4G WIFI, support Bluetooth 4.2, support Bluetooth to configure network, support APP QR code to configure network, support button to restore factory Settings
Support main stream, sub-stream switch HD/ultra HD playback, support APP control OSD display
Support local TF storage and cloud storage and playback, support cyclic storage and event storage
Supports 355 degrees horizontal / 120 degrees vertical rotation, supports multiple preset bits, supports cruise
Support accurate human detection and human tracking, support human detection alarm/capture/offline message push
Support online OTA firmware upgrade and TF card firmware upgrade
| Specification | |||||||
| Hardware | CPU | Model | FH8626;600HZ | ||||
| RAM | DDR3 | 512Mbit | |||||
| FLASH | NOR Flash | 8 Mbyte | |||||
| SENSOR | Model | GC2083;2MP CMOS | |||||
| Network | WIFI&BLE | TX801-B;2.4G+BLE4.2 | |||||
| Hardware Spec | Lens | f:2.8mm（optional: f:4mm) | |||||
| IRCUT Interface | Yes | ||||||
| Audio | Support MIC input and speaker output | ||||||
| light Control | Infrared | ||||||
| TF Card | Yes（up to 128G） | ||||||
| WIFI | 2.4G 802.11b/g/n，internal WIFI antenna | ||||||
| PT | Horizontal 355，vertical 120 | ||||||
| Reset | Yes，long press 5 seconds to reset | ||||||
| Installation | Support ceiling/wall mount | ||||||
| ESD | Yes | ||||||
| Power Supply | USB 5V/2A | ||||||
| Weight | ≈280g | ||||||
| Dimension(mm) | 87mm*87mm*112mm | ||||||
| Operating Temperature | ﹣10°~50° | ||||||
| Storage Temperature | ﹣20°~70° | ||||||
| Operating Humidity | 15%~85% | ||||||
| Video | Compression | H.264 | |||||
| Resolution | Main Stream | Sub Stream | |||||
| 1920*1080@15fps | 640*360@15fps | ||||||
| Bitrate | 500Kbps-1.5Mbps | ||||||
| Frame Rate | 1-25fps | ||||||
| Image | Image Control | Saturation, contrast, brightness, sharpness can be adjusted | |||||
| Automatic White Balance | Yes | ||||||
| Automatic Exposure | Yes | ||||||
| WDR | yes | ||||||
| Min. Illumination | Full color，support 0.001lux | ||||||
| Fill Light Control | Soft Photosensitive | ||||||
| Detection & Tracking | Human Detection | Support multi-person simultaneous detection, support human detection, alarm push, trigger local and cloud event video | |||||
| Human Tracking | Support horizontal and vertical motor synchronous high-performance tracking, support automatic return after detection of no one | ||||||
| Preset | Supports up to 6 presets, suport cruising | ||||||
